Tru-Wedge Anchors

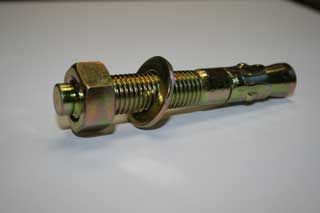

TRU-WEDGE ANCHORS

  • Electro galvanized
  • For fixing into concrete and rock
  • Anchor thread size equals hole size to be drilled into concrete
  • Non-bottom bearing. Does not require precise hole depth.
  • Supplied complete with nut and washer.

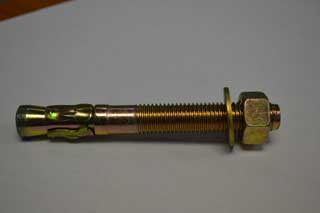

tru-wedge Anchors
RefAnchor Size & HolePull-Out (Kgs)Shear (Kgs)Min. Depth
TA 10010 x 751790 kg2345 kg50 mm
TA 10110 x 9050 mm
TA 12012 x 803050 kg3825 kg65 mm
TA 12112 x 11065 mm
TA 16116 x 903630 kg4900 kg75 mm
TA 1626 x 11075 mm
TA 16316 x 13075 mm
TA 20120 x 1105960 kg8100 kg90mm
TA 20220 x 16090 mm

SPACE, EDGE AND END DISTANCE RECOMMENDATIONS
Anchor Size mm10121620
Spacing Distance mm659010135
Edge and End Distance mm Load Parallel or Away From Edge50657590
Load Toward Edge7090105115
pdf download Download Tru-Wedge Anchors Brochure »
